Enhance System Performance and Access Latest Features with X20 PLC

The X20 Control System is a powerful upgrade for your system designed to give you faster processing with reduced power consumption, as well as access to the latest software and features available.

Key Features

  • 1 week of planned on-site maintenance for installation
  • NEW modern and intuitive PC4500 software
  • Enhanced LogViewer Software with all purchases
  • FREE Windows 10 PC worth over €5000 with installation

Request A Quote
Contact Us

Scroll down

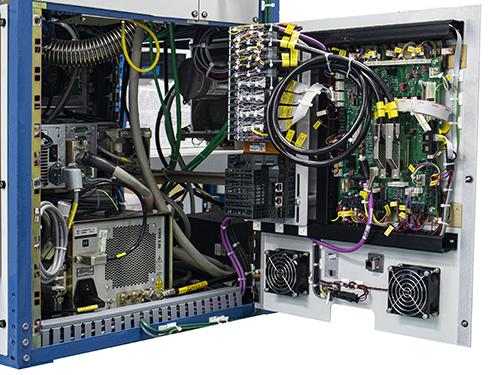

This upgrade offers both hardware and software enhancements for your PlasmaPro or Plasmalab system.
Its modular design allows for easy expansion with future upgrades and replacements.

Benefits

  • Every X20 Control System installation will come with a free system benchmark to check tool health
  • Faster system processing
  • Reduced power consumption
  • System is prepared for future upgrades, such as pumps, turbos, light towers and end point detectors

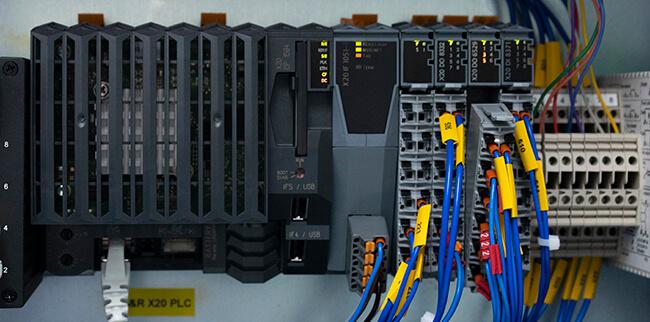

X20 PLC close-up

Hardware

  • Onboard PID removes the need for external temperature controllers

Supportability

  • Compatible with all current ancillaries
  • Modular design allows easy expansion with future upgrades, easier replacements, and quicker repairs
  • Necessary for service contracts
  • Available for your PlasmaPro/Plasmalab system (with Blue PLC installed)
Request A Quote

Software

  • Enhanced LogViewer:
    • Real-time graphing of all process parameters
    • Comparison with previous runs, showing, long-term repeatability
    • Simplified user interface
    • Power statistics package for process development
  • PC4500:
    • Our latest system software, modern, intuitive and efficient
    • Minimise risk by independently managing user access and abilities
  • TeamViewer:
    • Support Agents can remotely access internet-enabled PCs for support and servicing
    • Retune digital AMUs
    • Control tool in service mode for advanced diagnosis of problems
  • Diagnostic Viewer:
    • Captures 60 seconds of all PLC inputs and outputs before errors
    • Live I/O voltages from PLC in real-time – no more volt meters!

Available for Plasma 80, 800, 100 and 133 Systems

PlasmaPro 80

PlasmaPro / Plasmalab 80

PlasmaPro 100

PlasmaPro / Plasmalab 100

PlasmaPro 133

PlasmaPro / Plasmalab 133

PlasmaPro 800

PlasmaPro / Plasmalab 800

Not sure if your system is compatible for upgrade?

Contact Us Today

Contact Us Today For A Free Quote!

X20 PLC offers:

  • Faster processing, reduced power consumption, improved performance
  • NEW modern and intuitive PC4500 software
  • Enhanced LogViewer Software with all purchases
  • FREE Windows 10 PC worth over €5000 with all purchases
